PRY-1400D Servo Precision High Speed Sheet Cutting Machine

Name: PRY1400D Servo Precision High Speed Sheet Cutting Machine
Brand: PRINTYOUNG
Price: 43000 USD

China PRY-1400D Servo Precision High Speed Sheet Cutting Machine wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-1400D

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 43000 Set

Supply Ability : 30 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Measurement of the Machine : 12000 * 4000 * 2400 mm

Weight : 11500kg reference

Max Speed : 400 cuts/min

Voltage : 380V , 25kw , 3Phase , 50Hz

Reference Weight of Cutting Paper : 50 ~ 550 g

Cutting Accuracy : ± 0.3 mm

Cutting Length : 450 ~ 1650 mm

Maximum Scroll Diameter : 1800mm (71) max

Maximum Paper Cutting Width : 1400 mm

The Format of Slitting : 2 sheet

Max Cutting Meter Speed : 300 m/min

Air Pressure Source Requirements : 0.8 Mpa

Contact Now

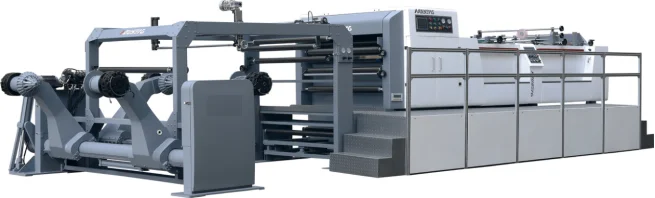

PRY-1400D Servo Precision High Speed Sheet Cutter

PRY-1400D Servo Precision High Speed Sheet Cutting Machine

Features

PRY web cutting machine apply the advanced technique from Britain.
The machine is transmitted by servo motor.
The speed of cutting paper is fast and stable.
Germany precise bear and cutting knife assure the high cutting precision.
Touch screen computer interface control,simple operation,reasonable structure,anti-music stands,to ensure smooth paper.
This machine is the paper processing machine which is very popular in the paper making and printing industry and will improve the efficiency and benefit for your company to a large extent.

Technical Parameters

PRY-1400D High Speed Sheet Cutter
Measurement of the Machine	12000 * 4000 * 2400 mm
Weight	11500kg reference
Max Speed	400 cuts/min
Voltage	380V , 25kw , 3Phase , 50Hz
Reference Weight of Cutting Paper	50 ~ 550 g
Cutting Accuracy	± 0.3 mm
Cutting Length	450 ~ 1650 mm
Maximum Scroll Diameter	1800mm (71) max
Maximum Paper Cutting Width	1400 mm
The Format of Slitting	2 sheet
Max Cutting Meter Speed	300 m/min
Air Pressure Source Requirements	0.8 Mpa
Cutter Maximum Load	Single card paper - 500gsm (must consider the density and quality)

Configuration

Unwinded Stand

Type:double arm type for paper core 3”6”12” roll rack
2 unwinds pick-up type located at the rear of the machine structurally sized to be able to hold reels of a weight approximately 2500kgs.The up and down movements are all hydraulic and are directly controlled from the console by selectors that control the solenoid valves.Oil pressure to control the paper arm before and after closing and moving and lifting.Lifting movement capable of stable and rapid,more simple and convenient operation.

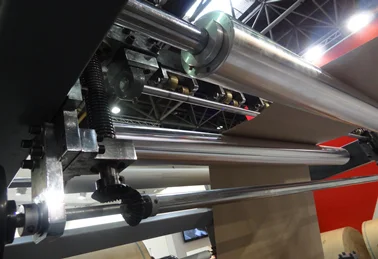

Cutting Unit

On the knife the British cutter method to reduce the load and noise when the cutter extend cutter life.On knife roller body to steel welding gave precision machining,and dynamic balance adjustment,effectively reduce the vibration and noise of the high-speed operation.
Under the knife:knife block with cast iron integrally molded casting,precision machining,good stability.

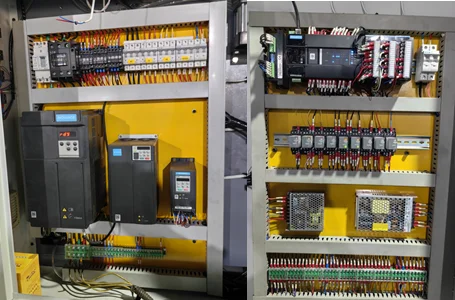

Electronic Control

The back cutter:made of special steel precision knife processing,long life blade easily adjustable.

PLC to control electronic system, automatically and more convenient for operation.

The cutting length,quantity and finished.
paper pieces can be directly input onto the touch screen,and clearly indicate the real length,cutted numbers immediately.

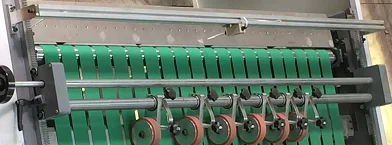

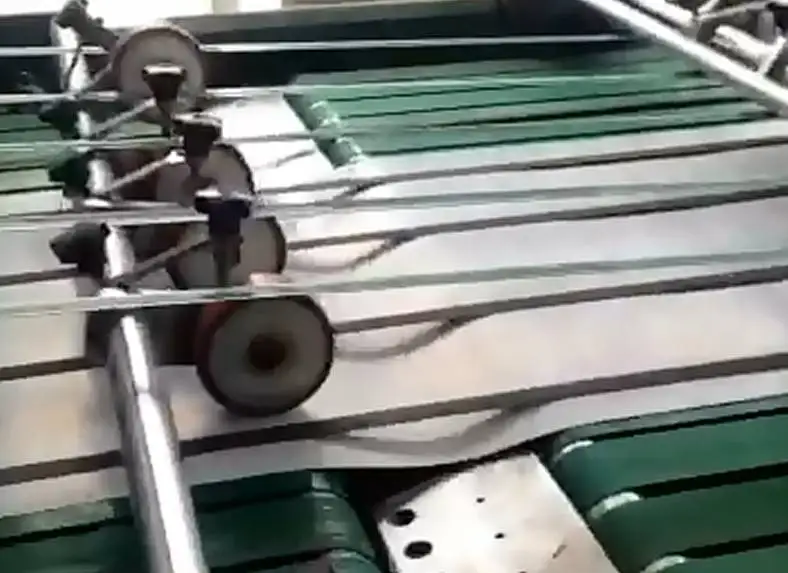

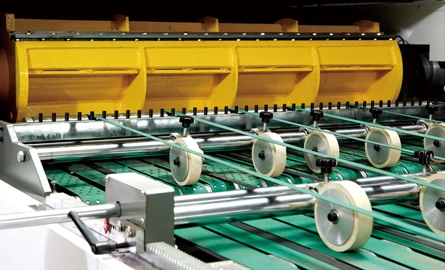

The Conveyor and Paper Collection System by Jogger

Conveyor system with mult-stage: from high speed to low speed.First to separate the cut paper quickly, and then overlap the paper,then collect and pile the paper.Lift stacked set paper sets,the paper stack to a considerable height,that is automatically dropped.The stacker table has three sides shake finishing function,the side of the motor to drive the paper,the paper,on both sides by high-quality motor jogger to adjust the amplitude of the paper manually to improve the simplicity and safety of the operation.

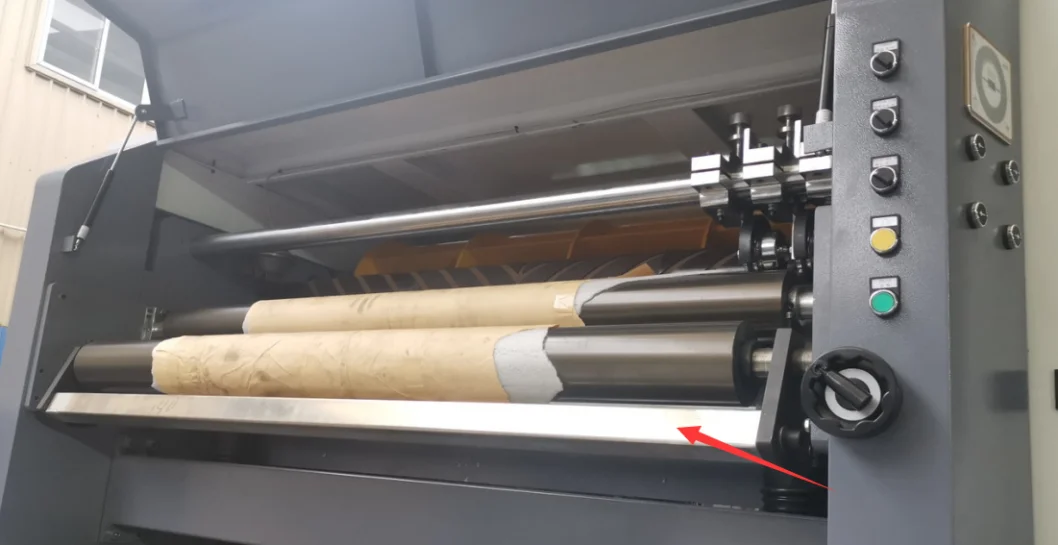

Curly Device

Curly device is in the paper roll before slitting device to eliminate the roll curl or fold device,in order to the stability of the paper roll tension.The paper roll first passes through (to the edge of the roll) components into the deconvolution device,the rollers are guide roll.

The New Anti Curvature Device----Full Automatic Controlled by PLC

Effectively remove the curl of the roll to make the paper more flat,more conducive the paper roll tension stability.

Squareness Adjustment System (Auto Prismatic Adjustment System for Paper)

Adjust squareness of paper,our engineer will fix it by once,and operator no need to readjust.

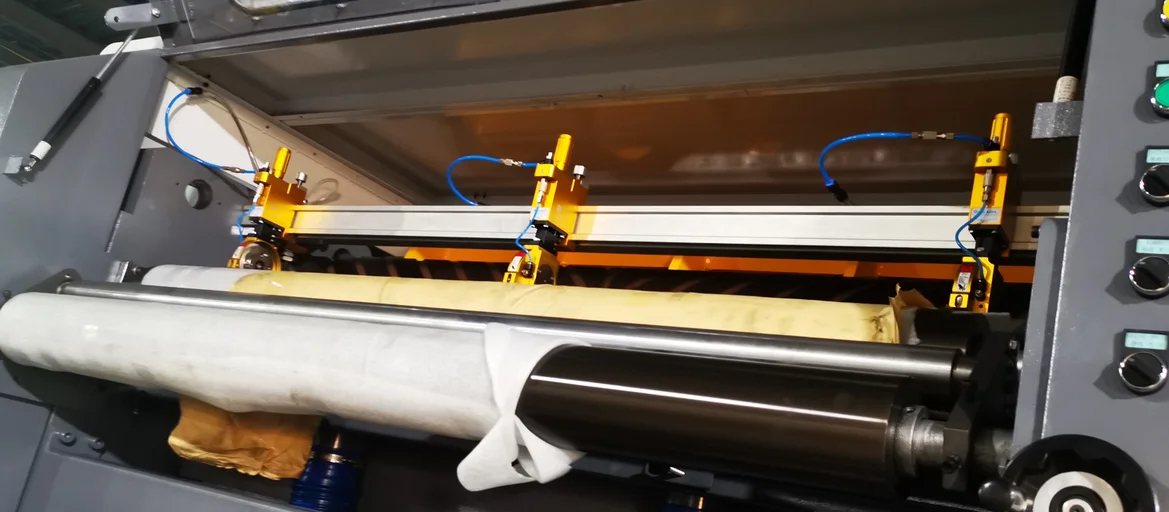

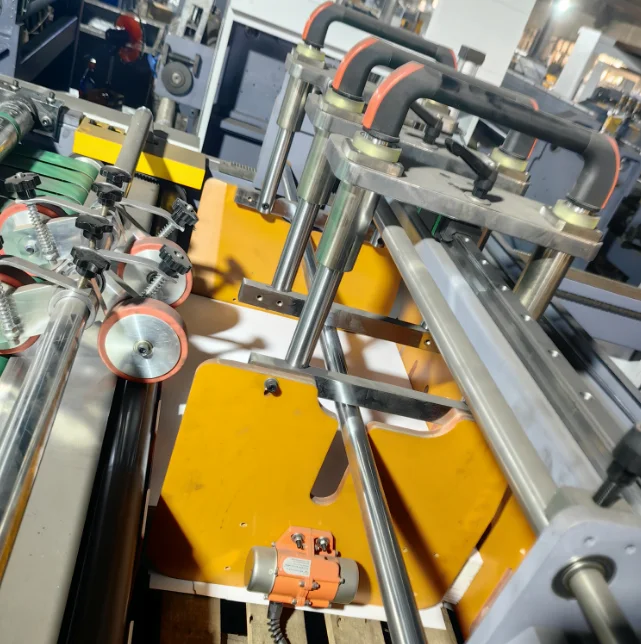

Slitting Knife(Pneumatic Type 3 Sets)

Three sets of slitting knife is used to trim and middle slitting.

Automatic Marking Machine

With precise count after insert marking, operators only need to input on the man-machine interface to after the number of paper,can be in accordance with the settings to marking the quantity of paper.

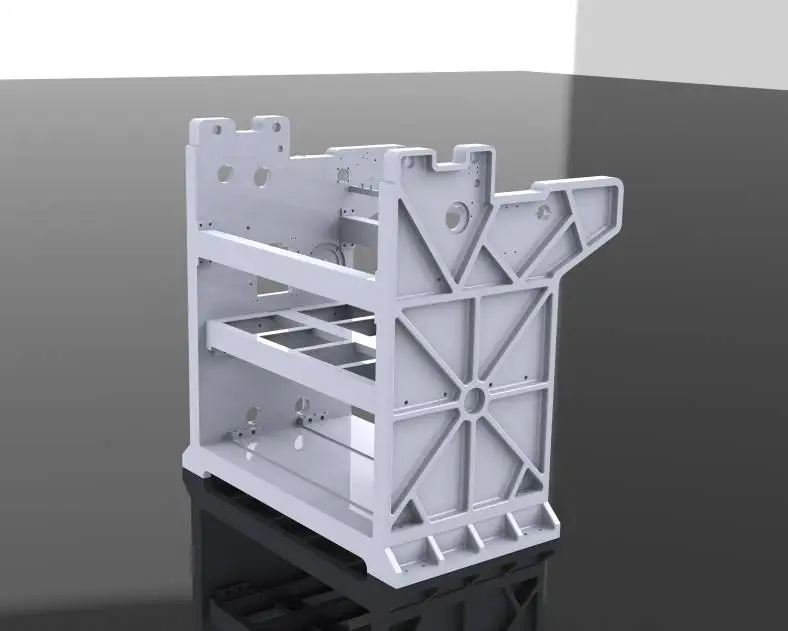

The Main Machine Structure(Knife Holder and Holder Stand)

The main machine wall through finite element analysis,mechanical vibration analysis and optimization of the frame,uses the high quality nodular cast iron for the integration of design,and through precision machining,perfect the resonance phenomenon between the transmission components, make the operation more stable, improve the service life of the bearing parts.

Automatic Paper Jam Stop

Have sensor to give signals to the system if there are any paper jam occur at conveyor, and the machine will stop immediately to save the papers.

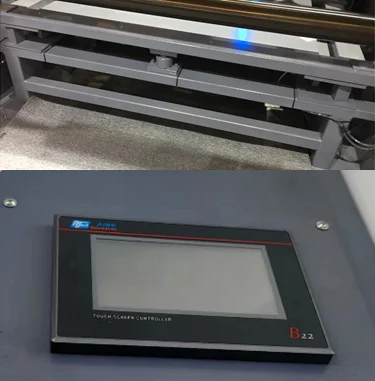

Web-Guide System

Strict process quality control, servo control system durable, maintenance-free,fine processing, high dynamic response,no buffering,accurate positioning, driver limit digital adjustable. Display can be automatically set to sleep for automatic operation, which can save energy.The large screen displays in real time,and the system running status is clear inside.

Static Eliminating System

Anti-static bar there can eliminate the static from the sheets.

Motor Controlled Chain Type Layboy

More stable and more weight allowable for the paper sheet collecting.It is about 2 tons.

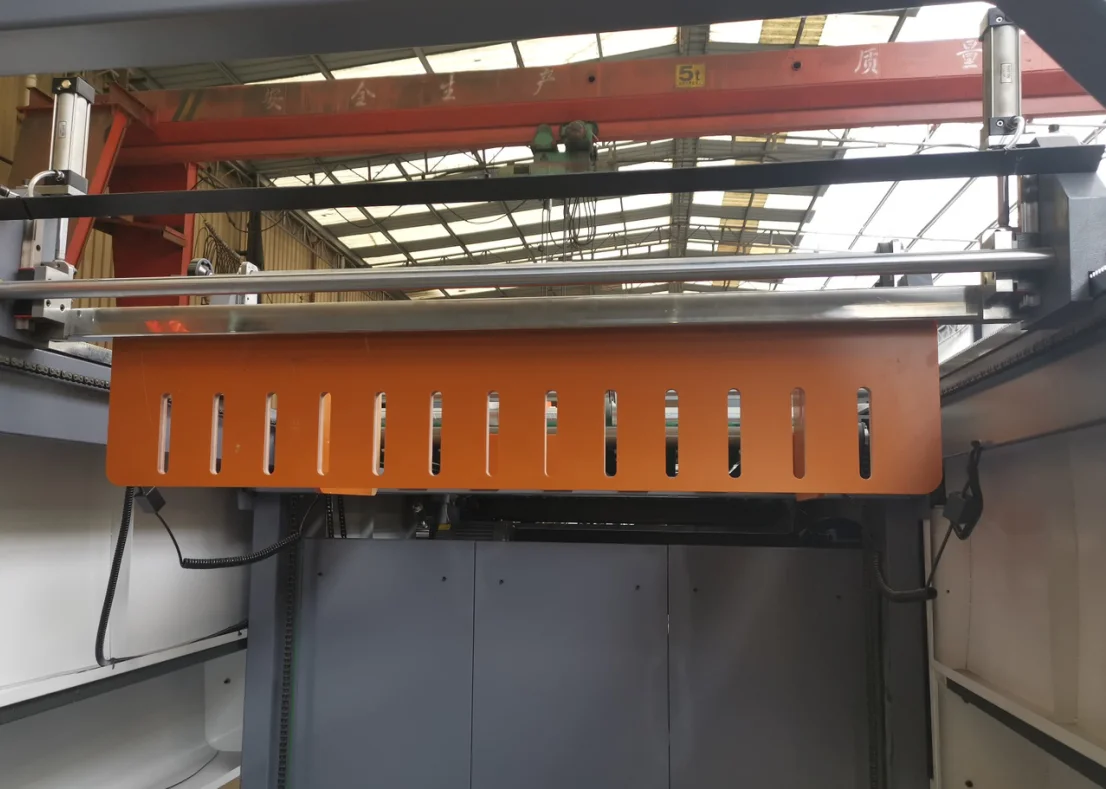

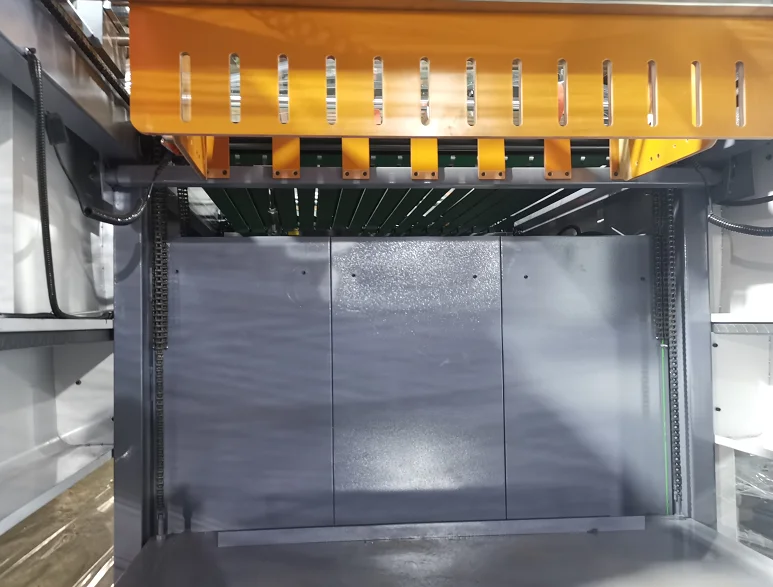

Pneumatic Controlled Dam-Board

By pressing button,the dam-board will up and ready for paper piles to come out.

pneumatic Controlled Collecting Boards

2-Screen Operation with Remote Control System

Driving Motors

1.AC Servo motor & encoder for cross knife
2.AC motor & frequency transformer for high speed conveyor and low speed conveyor
3.AC motor for up & down paper piling stand
4.AC motor for joggers
5.AC motor for unwind stand
6.AC motor for collecting waste edge

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
